Function CE700AL CE700AR
Connectors
Console Ports 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue) 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
KVM Ports 1 x SPHD-17 Female (Green) N/A
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
Power 1 x DC Jack (Black) 1 x DC Jack (Black)
Pushbuttons
Operating Mode Selection 1 x Pushbutton N/A
LEDs
Local 1 (Green) N/A
Remote 1 (Green) 1 (Green)
Link N/A 1 (Green)
Emulation
Keyboard / Mouse USB USB
Power Consumption DC5.3V:2.17W:14BTU DC5.3V:1.59W:12BTU
Video 1920 x 1200 @ 60Hz (30m)
1600 x 1200 @ 60Hz (100m)
1280 x 1024 @ 60Hz (150m) 1920 x 1200 @ 60Hz (30m)
1600 x 1200 @ 60Hz (100m)
1280 x 1024 @ 60Hz (150m)
Environmental
Operating Temperature 0 – 50°C 0 – 50°C
Storage Temperature -20 – 60°C -20 – 60°C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.33 kg ( 0.73 lb ) 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.70 x 8.65 x 2.50 cm
(5 x 3.41 x 0.98 in.) 12.70 x 8.14 x 2.50 cm
(5 x 3.2 x 0.98 in.)
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

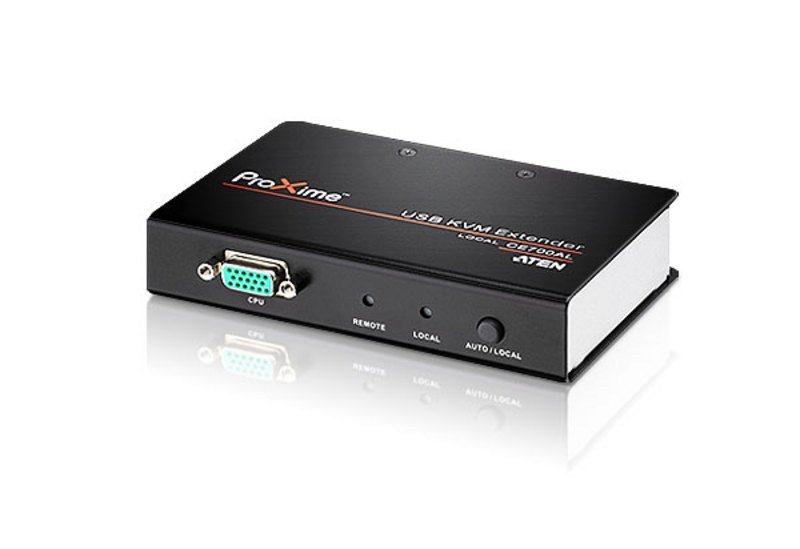

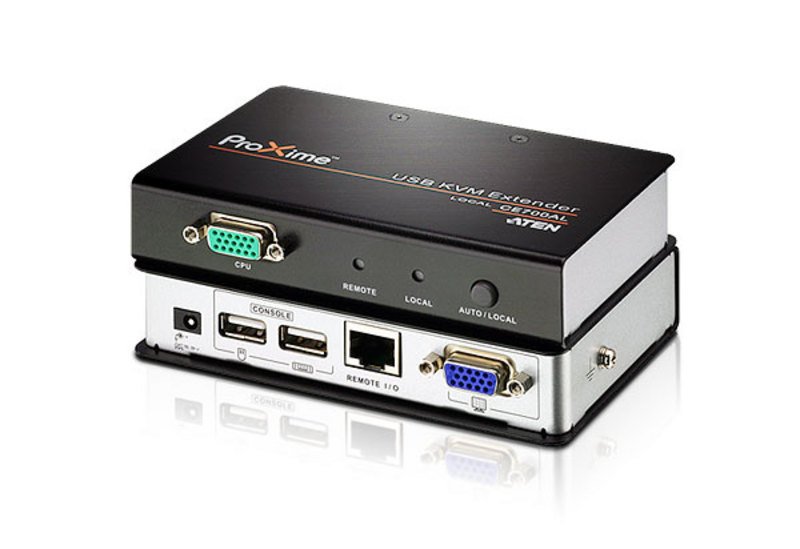

ATEN CE700A USB VGA Cat 5 KVM Extender
Original price was: ₹32,999.00.₹25,999.00Current price is: ₹25,999.00.
The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).
Function CE700AL CE700AR
Connectors
Console Ports 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue) 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
KVM Ports 1 x SPHD-17 Female (Green) N/A
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
Power 1 x DC Jack (Black) 1 x DC Jack (Black)
Pushbuttons
Operating Mode Selection 1 x Pushbutton N/A
LEDs
Local 1 (Green) N/A
Remote 1 (Green) 1 (Green)
Link N/A 1 (Green)
Emulation
Keyboard / Mouse USB USB
Power Consumption DC5.3V:2.17W:14BTU DC5.3V:1.59W:12BTU
Video 1920 x 1200 @ 60Hz (30m)
1600 x 1200 @ 60Hz (100m)
1280 x 1024 @ 60Hz (150m) 1920 x 1200 @ 60Hz (30m)
1600 x 1200 @ 60Hz (100m)
1280 x 1024 @ 60Hz (150m)
Environmental
Operating Temperature 0 – 50°C 0 – 50°C
Storage Temperature -20 – 60°C -20 – 60°C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.33 kg ( 0.73 lb ) 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.70 x 8.65 x 2.50 cm
(5 x 3.41 x 0.98 in.) 12.70 x 8.14 x 2.50 cm
(5 x 3.2 x 0.98 in.)
