Function CE770L CE770RQ
Connectors
Console Ports 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink) 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports 1 x SPHD-17 Female (Yellow)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink) N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack (Black) 1 x DC Jack (Black)
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
LEDs
Local 1 (Green) N/A
Remote 1 (Green) N/A
B N/A 1 (Blue)
G N/A 1 (Orange/Green)
R N/A 1 (Red)
Pushbuttons
Operating Mode Selection 1 x Pushbutton N/A
Color N/A 1 x Pushbutton
Select N/A 1 x Pushbutton
Emulation
Keyboard / Mouse USB USB
Video 1920 x 1200 @ 60Hz (150 m);
1280 x 1024 @ 60Hz(300m);
DDC, DDC2, DDC2B 1920 x 1200 @ 60Hz (150 m);
1280 x 1024 @ 60Hz(300m);
DDC, DDC2, DDC2B
Power Consumption DC5.3V:2.74W:17BTU DC5.3V:4.54W:26BTU
Environmental
Operating Temperature 0 – 50°C 0 – 50°C
Storage Temperature -20 – 60°C -20 – 60°C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.49 kg ( 1.08 lb ) 0.49 kg ( 1.08 lb )
Dimensions (L x W x H) 20.20 x 8.64 x 2.50 cm
(7.95 x 3.4 x 0.98 in.) 20.20 x 8.64 x 2.50 cm
(7.95 x 3.4 x 0.98 in.)
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

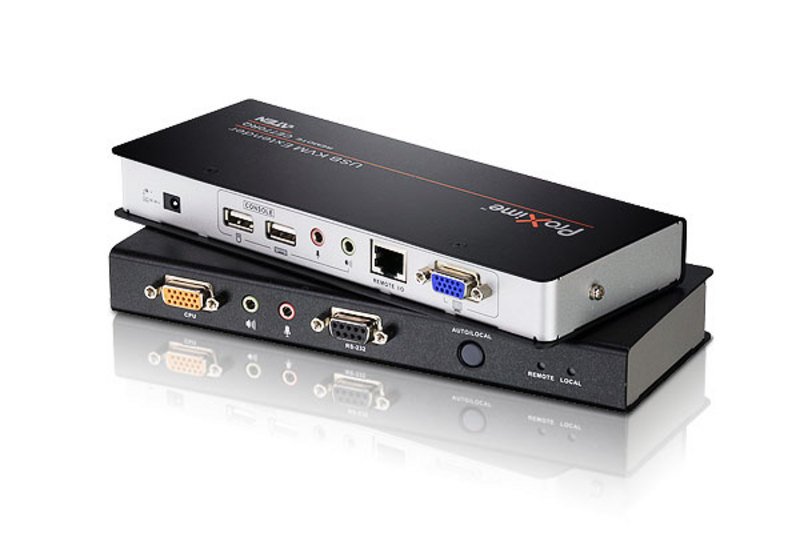

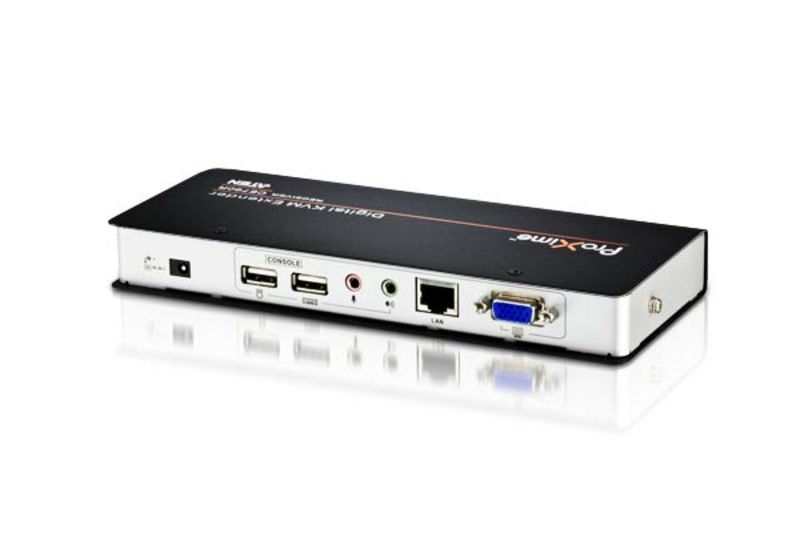

ATEN CE770 USB VGA/Audio Cat 5 KVM Extender with Deskew
Original price was: ₹79,999.00.₹59,999.00Current price is: ₹59,999.00.
The CE770 is a USB based KVM Extender with Deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console. The CE770 supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The CE770’s line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.
Function CE770L CE770RQ
Connectors
Console Ports 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink) 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports 1 x SPHD-17 Female (Yellow)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink) N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack (Black) 1 x DC Jack (Black)
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
LEDs
Local 1 (Green) N/A
Remote 1 (Green) N/A
B N/A 1 (Blue)
G N/A 1 (Orange/Green)
R N/A 1 (Red)
Pushbuttons
Operating Mode Selection 1 x Pushbutton N/A
Color N/A 1 x Pushbutton
Select N/A 1 x Pushbutton
Emulation
Keyboard / Mouse USB USB
Video 1920 x 1200 @ 60Hz (150 m);
1280 x 1024 @ 60Hz(300m);
DDC, DDC2, DDC2B 1920 x 1200 @ 60Hz (150 m);
1280 x 1024 @ 60Hz(300m);
DDC, DDC2, DDC2B
Power Consumption DC5.3V:2.74W:17BTU DC5.3V:4.54W:26BTU
Environmental
Operating Temperature 0 – 50°C 0 – 50°C
Storage Temperature -20 – 60°C -20 – 60°C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.49 kg ( 1.08 lb ) 0.49 kg ( 1.08 lb )
Dimensions (L x W x H) 20.20 x 8.64 x 2.50 cm
(7.95 x 3.4 x 0.98 in.) 20.20 x 8.64 x 2.50 cm
(7.95 x 3.4 x 0.98 in.)
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
