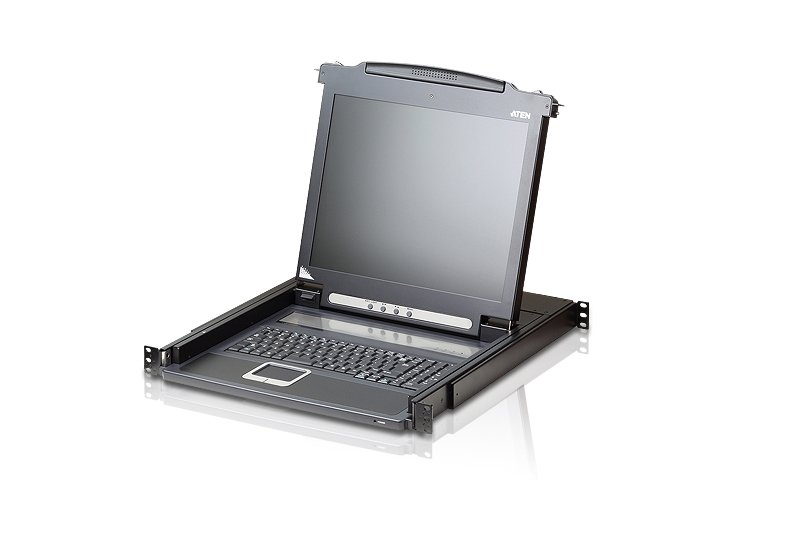

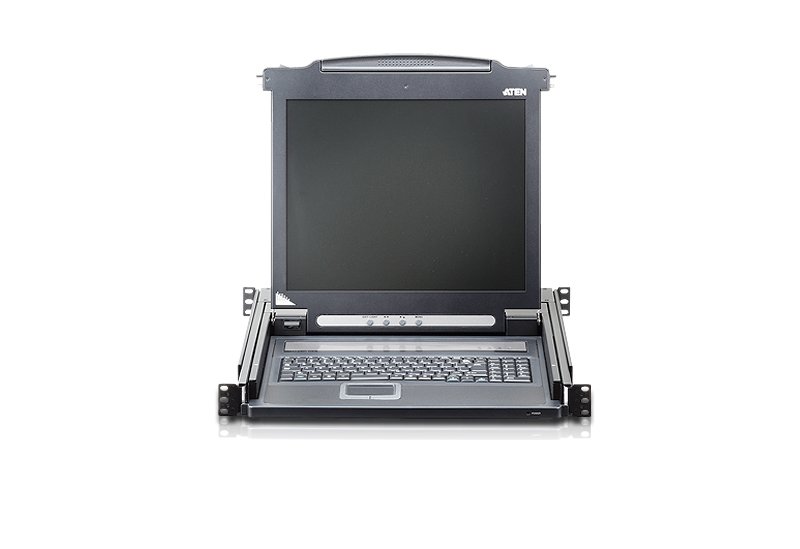

The CL1000M is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17″ LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing. Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch.

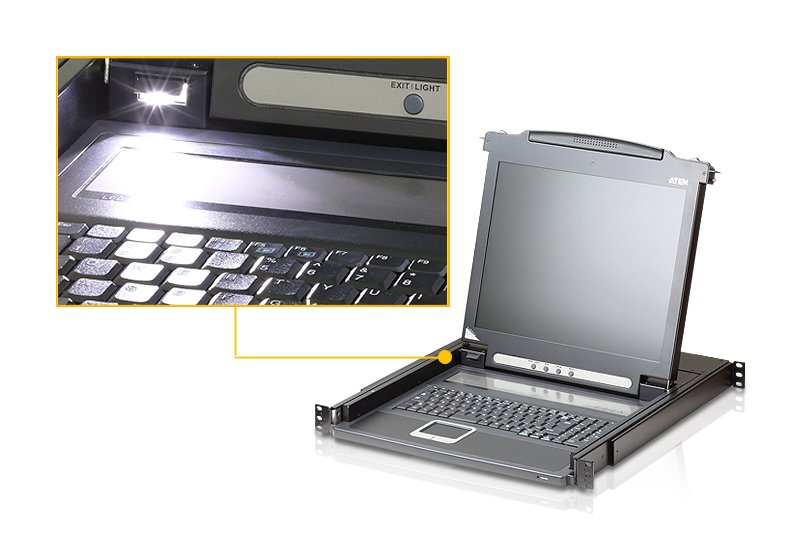

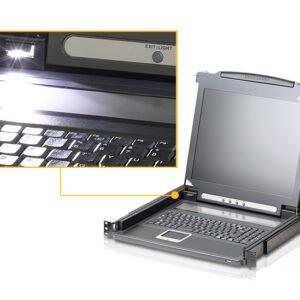

Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with a 17″ LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
Compatible with most PS/2 KVM Switches

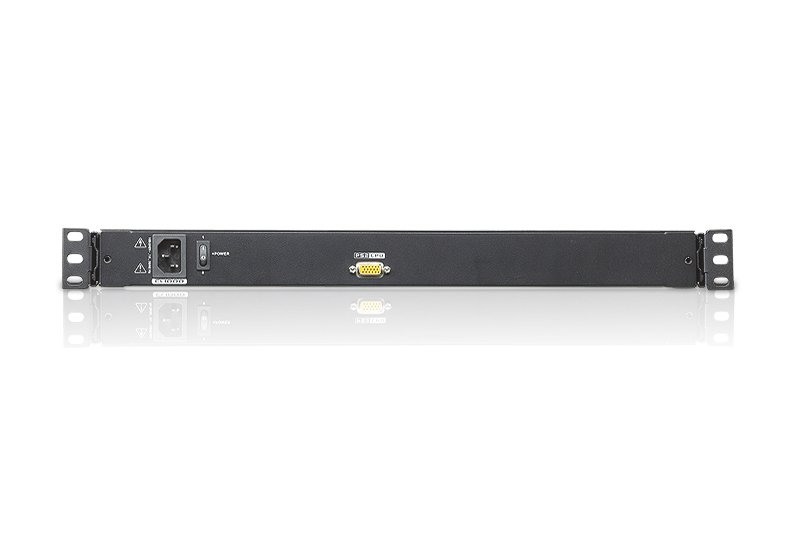

Internal power built in
Adjustable depth to fit within a rack
High video resolution:
-Up to 1280 x 1024 @75Hz

-Supports DDC, DDC2, DDC2B
DDC emulation – VGA settings of every connected computer are automatically adjusted for optimal output to the LCD monitor
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
Improved design – single person installation (optional)
Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD
Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with a 17″ LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
