Specification:
Product code L23UGSR-5HaxD2HaxD-NM
Architecture ARM 64bit
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 25 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V
Wireless specifications
Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Wireless 2.4 GHz chip model IPQ-5010
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6
Ethernet
Details
10/100/1000 Ethernet ports 1
Fiber
Details
SFP ports 1 (2.5G supported)
Peripherals
Details
Number of SIM slots 1 Modem (Nano SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP 66
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

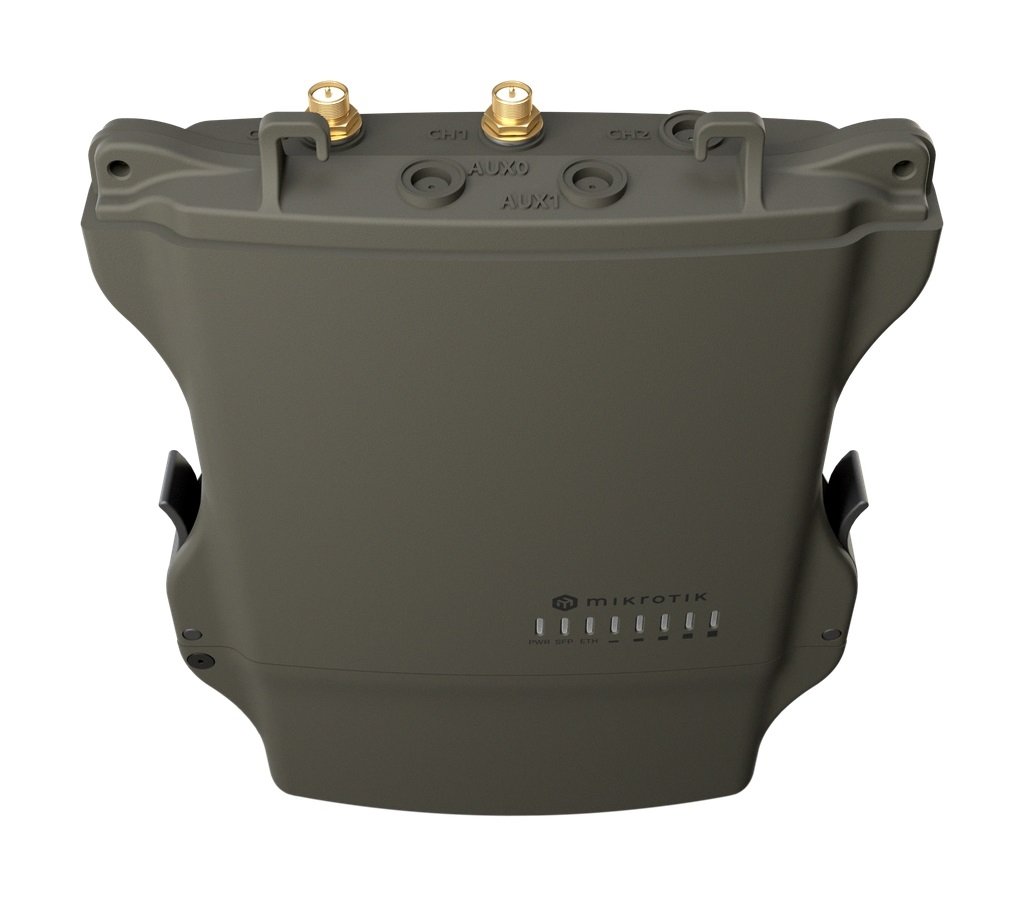

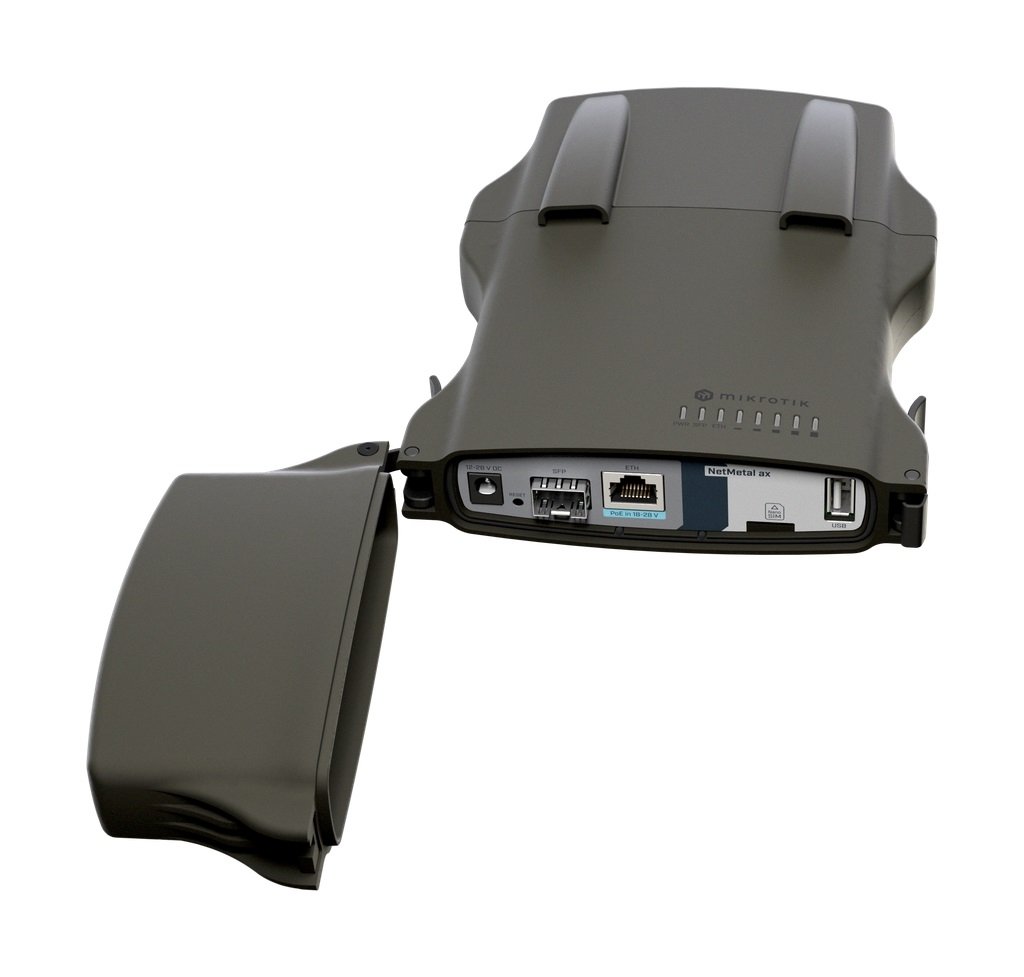

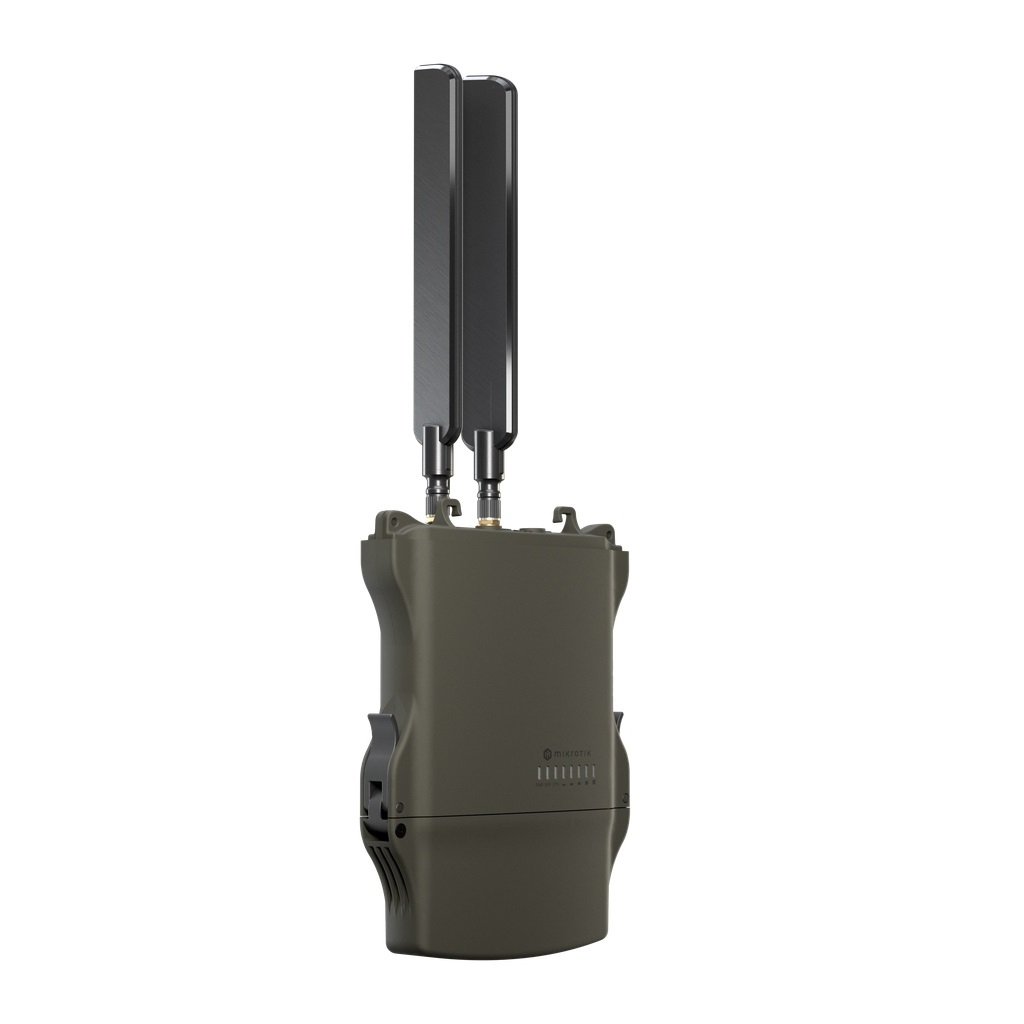

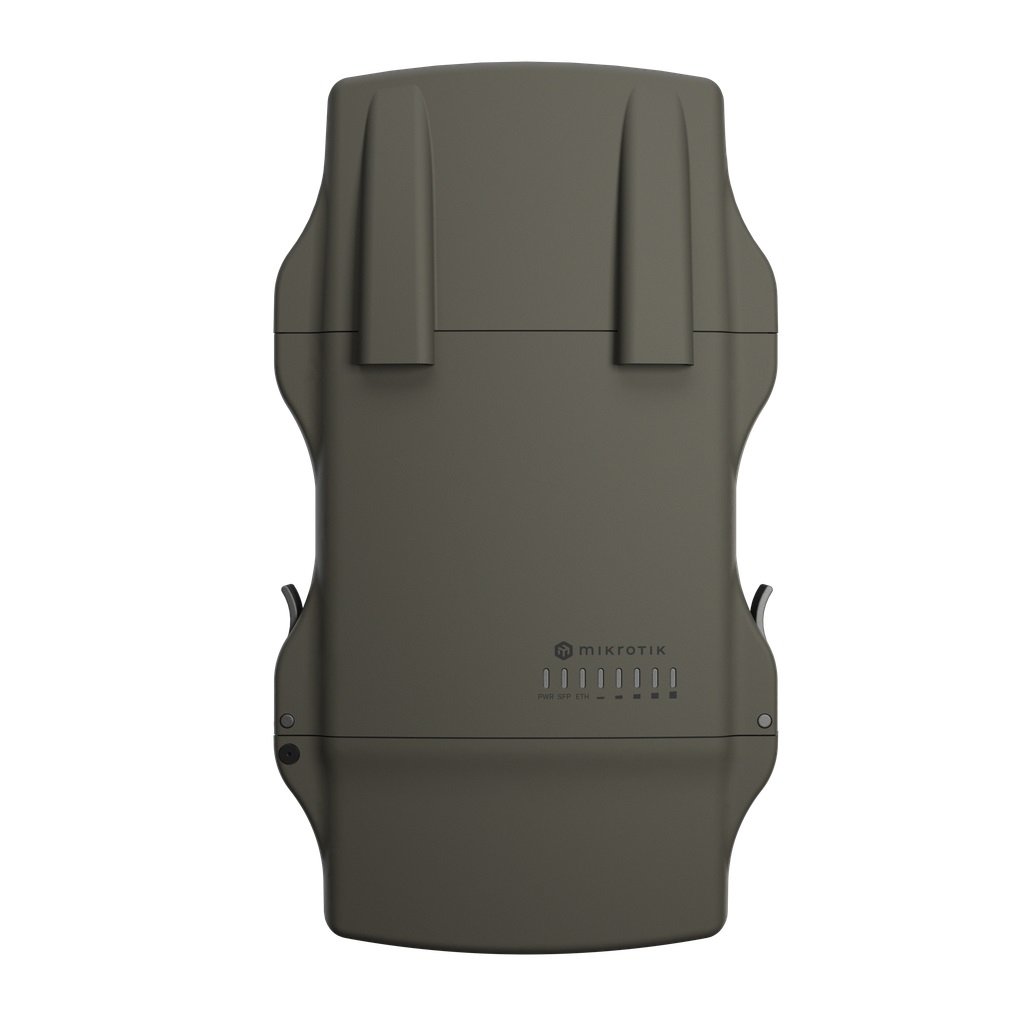

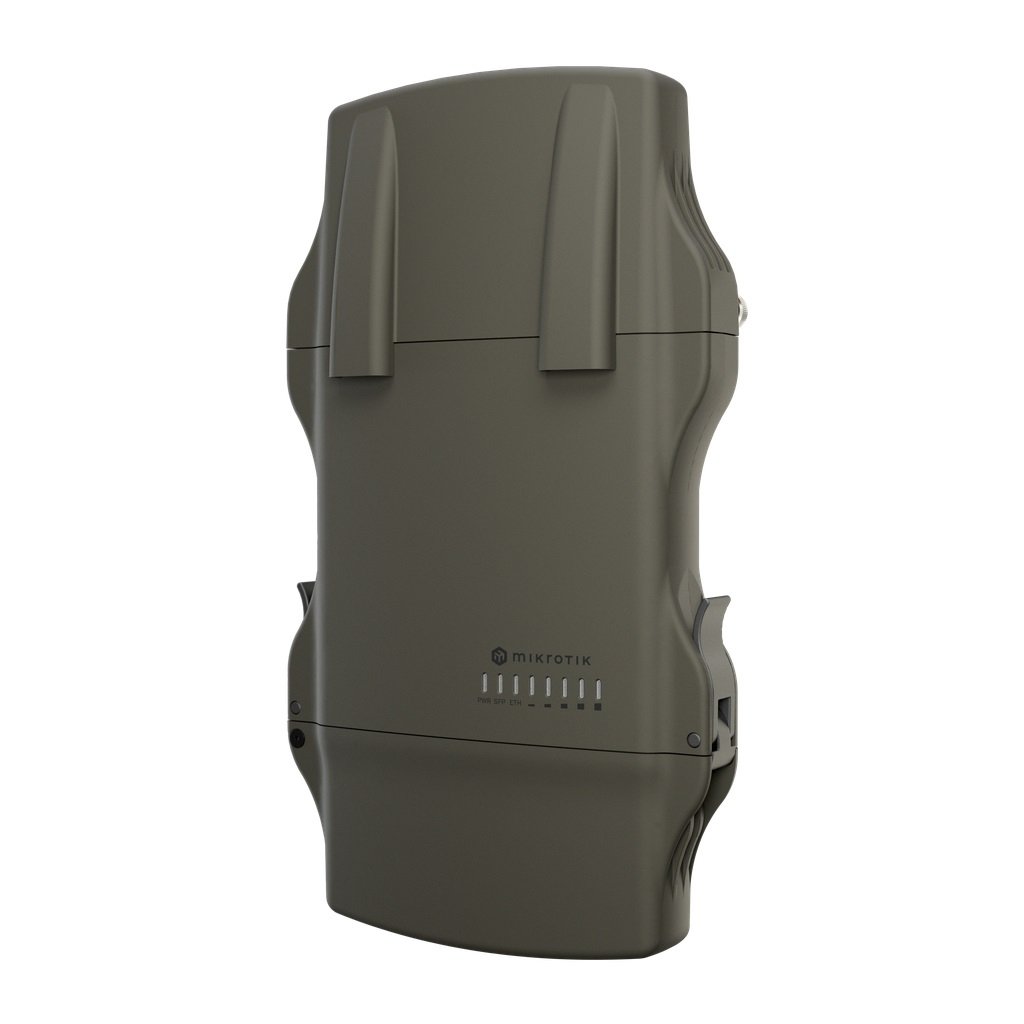

MikroTik NetMetal ax Long-range Dual-band Wi-Fi 6 Outdoor Access Point L23UGSR-5HaxD2HaxD-NM
Original price was: ₹24,999.00.₹16,899.00Current price is: ₹16,899.00.
1x Gigabit LAN port | 1x SFP port (2.5G supported) | 1x USB port (Type A) | Passive PoE-in (18-28 V) | Built-in 2.4 and 5Ghz 2×2 dual chain wireless with 2 RP-SMA connectors | Up to 574 Mbit/s in 2.4 Ghz (802.11b/g/n/ax) | Up to 1200 Mbit/s in 5 Ghz (802.11a/n/ac/ax ) | Router OS (Licence level 4)
