Product Specifications
• Product code: hEX S
• CPU: MT7621A
• CPU nominal frequency: 880 MHz
• CPU core count: 2
• CPU threads: 4
• Size of RAM: 256 MB
• 10/100/1000 Ethernet ports: 5
• SFP cages: 1
• PoE in: Passive, 802.3af/at
• PoE out: Passive PoE up to 57 V (Ether5)
• Supported input voltage: DC and PoE in: 12 – 57 V
• Power output:
nbsp;nbsp;nbsp; Max out per port output (input < 30 V): 500 mA nbsp;nbsp;nbsp; Max out per port output (input > 30 V): 500 mA
nbsp;nbsp;nbsp; Max total out: 500 mA
• PCB temperature monitor: Yes
• Voltage monitor: Yes
• USB slot: USB type A
• MicroSD slot: 1
• Operating temperature: -40°C to +70°C
• Dimensions:
• License level: 4
• Operating System: RouterOS
• Max Power consumption: 11 W
Product Includes

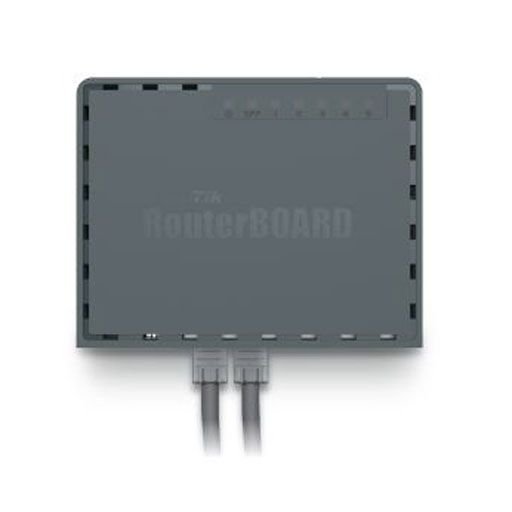

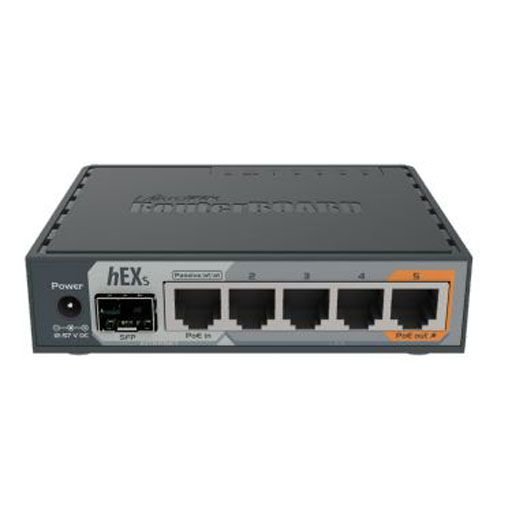

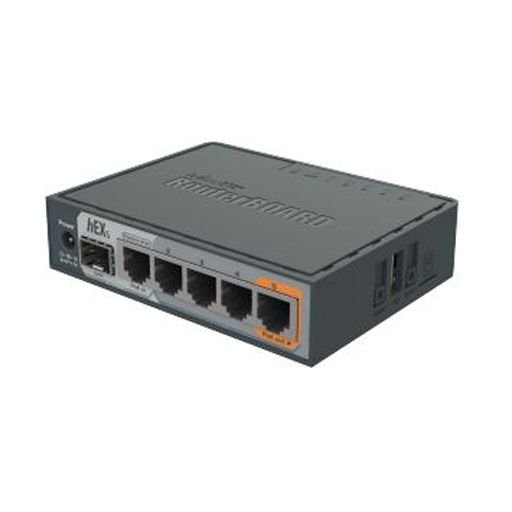

(1) hEX S Router
(1) Power Adapter (24V 1.2 A)
(1) User Guide
