Specifications

Details

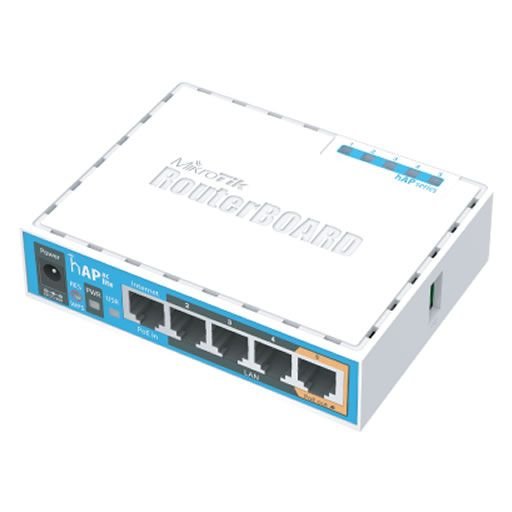

Product code RB952Ui-5ac2nD
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 113 x 89 x 28mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -30°C to 70°C
Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 433 Mbit/s
Wireless 5 GHz number of chains 1
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2
Wireless 5 GHz chip model QCA9887
Wireless 5 GHz generation Wi-Fi 5
AC speed AC750
Ethernet

Details
10/100 Ethernet ports 5
Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-28 V
Max power consumption 20 W
Max power consumption without attachments 8 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 10-28 V
PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input < 30 V) 500 mA Max total out (A) 500 mA
