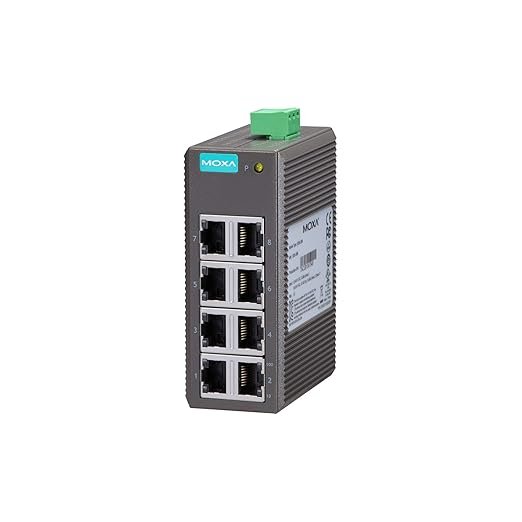

Moxa EDS-208 8 Port Entry Level unmanaged Ethernet Switch w/(8) 10/100BTX Ports

Sale

Brands
Moxa
Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
10/100BaseT(X) Ports (RJ45 connector)

EDS-208: 8
EDS-208-M-SC: 7
EDS-208-M-ST: 7
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)

EDS-208-M-SC: 1
100BaseFX Ports (multi-mode ST connector)

EDS-208-M-ST: 1
Optical Fiber

Switch Properties

Processing Type

Store and Forward
MAC Table Size

2 K
Packet Buffer Size

768 kbits
Power Parameters

Input Voltage

12/24/48 VDC
24 VAC
Operating Voltage

9.6 to 60 VDC
18 to 30 VAC
Input Current

EDS-208 Models: 12 to 48 VDC, 0.14 to 0.04 A or 24 VAC, 50-60 Hz, 0.13 A (max.)
EDS-208-M-SC/EDS-208-M-ST Models: 12 to 48 VDC, 0.20 to 0.05 A or 24 VAC, 50-60 Hz, 0.21 A (max.)
Connector

1 removable 3-contact terminal block(s)
Overload Current Protection

Supported
Reverse Polarity Protection

Supported
Physical Characteristics

Housing

Plastic
IP Rating

IP30
Dimensions

EDS-208: 40.03 x 100 x 74 mm (1.58 x 3.94 x 2.91 in)
EDS-208-M-SC: 40.03 x 100 x 82.13 mm (1.58 x 3.94 x 3.23 in)
EDS-208-M-ST: 40.03 x 100 x 84.1 mm (1.58 x 3.94 x 3.31 in)
Weight

EDS-208: 159 g (0.35 lb)
EDS-208-M-SC: 166 g (0.37 lb)
EDS-208-M-ST: 166 g (0.37 lb)
Installation

DIN-rail mounting
Environmental Limits

Operating Temperature

-10 to 60°C (14 to 140°F)
Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity

5 to 95% (non-condensing)
Standards and Certifications

Safety

UL 508
EN 62368-1
EMC

EN 55032/35
EMI

FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
Shock

IEC 60068-2-27
Vibration

IEC 60068-2-6
Freefall

IEC 60068-2-32
MTBF

Time

EDS-208 Models: 10,541,554 hrs
EDS-208-M Models: 7,499,231 hrs
Standards

Telcordia (Bellcore), GB
Warranty

Warranty Period

5 years
