Brands
Teltonika Networks
Ethernet
ETH
5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3x, 802.3az
INDUSTRIAL PROTOCOLS
Profinet
Profinet Class A conformance (available with optional order code)
Performance Specifications
Bandwidth (Non-blocking)
1 Gbps
MAC address table size
2K entries
Jumbo frame support
2048 bytes
Power
Connector
2-pin industrial DC power socket
Input voltage range
9 – 30 VDC
PoE (passive)
Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC
Power consumption
Idle: 0.3 W / Max: 0.9 W
Physical Interfaces
Ethernet
5 x RJ45 ports, 10/100 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Power
1 x 2-pin industrial DC power socket
Physical Specification
Casing material
Aluminium housing
Dimensions (W x H x D)
113.1 x 27.4 x 80.5 mm
Weight
146.5 g
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
Operating Environment
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Regulatory & Type Approvals
Regulatory
CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE
EMC Emissions & Immunity
Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
Safety
Standards
CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

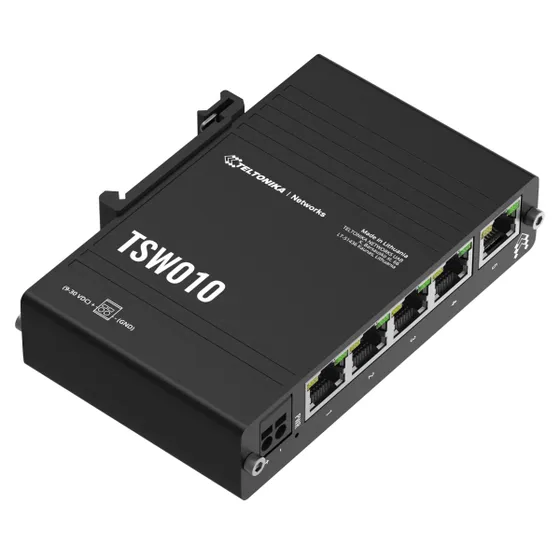

Teltonika TSW010 5 Ports Unmanaged Industrial Ethernet Switch
Original price was: ₹8,999.00.₹3,499.00Current price is: ₹3,499.00.
TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
