Brands
Cisco
Interfaces
Ports 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
4 x 10Gb SFP PoE+
1 x Micro-USB
Protocols
Layer Services Supported Layer 2 Support, Layer 3 Support
Supported Protocols Head-of-Line (HOL) Blocking
IGMP Snooping
IPv4
IPv6
Link Aggregation
MAC Filtering
Port Mirroring
RADIUS
SNMPv1
SNMPv2c
SNMPv3
Queuing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 16K
Multicast Groups 2000
VLAN IDs 4094
Security
Security Features DoS Attack Prevention
RADIUS Authentication
Storm Control
Access Control List 1024
IP Interfaces 128
Static Routes 990
SNMP Support 1, 2c, 3
Standards
RFC RFC 4330
Supported IEEE Standards 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3an, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate 95.23 Mpps
Switching Bandwidth 128 Gb/s
Priority Queues 8
Packet Buffer 1.5 MB
Computer
Flash Memory 256 MB
Memory 512 MB
OS Compatibility Windows
macOS
Linux
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Electrical
Power Draw 240.4 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 195 W
PoE per Port 30 W
Environmental
Operating Temperature 23 to 122°F / -5 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -13 to 158°F / -25 to 70°C
Storage Humidity 10 to 90%
General
Cooling System Passive
Mean Time Between Failures (MTBF) 698,220 Hours
Indicator Lights Link/Activity, PoE, Speed, System
Rack Form Factor 1 RU
Dimensions 17.5 x 11.8 x 1.7″ / 445 x 299 x 44 mm
Weight 8.11 lb / 3.68 kg
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

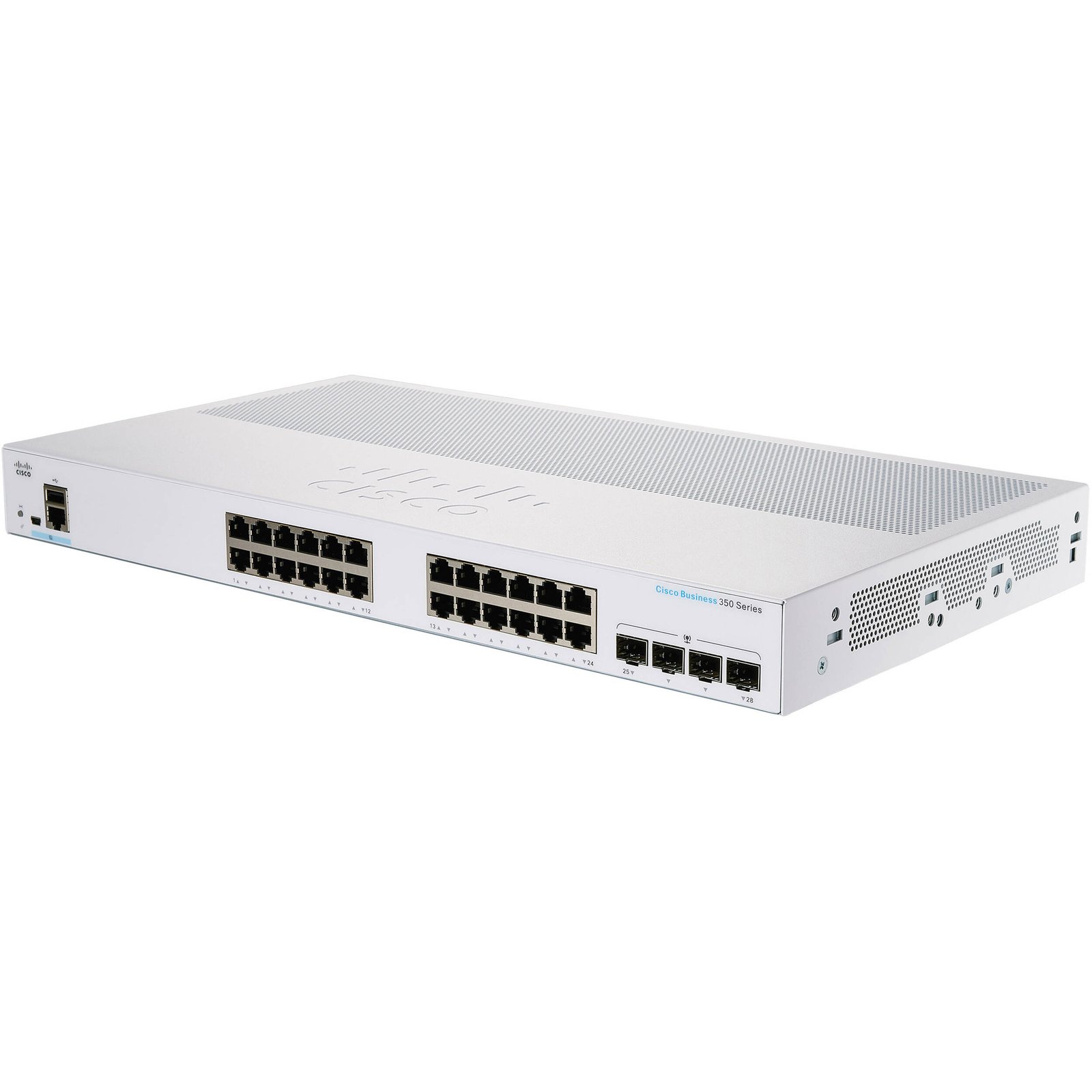

Cisco CBS350-24P-4X 24-Port Gigabit PoE+ Compliant Managed Switch with SFP+
Original price was: ₹129,999.00.₹85,999.00Current price is: ₹85,999.00.
Quickly expand your business’s network capacity to support powered devices such as IP security cameras, wireless access points, VoIP phones, and more with the CBS350-24P-4X 24-Port Gigabit PoE+ Compliant Managed Switch with SFP+. This managed rackmount switch features 24 PoE+ compliant Gigabit Ethernet ports with a 195W budget to operate compatible devices. There are also four 10 Gigabit SFP+ ports available for high-speed fiber connections. Its extensive Layer 2 and Layer 3 features include secure connections, clear communications, and link aggregation to create up to eight groups of 16 ports for multi-Gig connections to compatible devices.
Brands
Cisco
Interfaces
Ports 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
4 x 10Gb SFP PoE+
1 x Micro-USB
Protocols
Layer Services Supported Layer 2 Support, Layer 3 Support
Supported Protocols Head-of-Line (HOL) Blocking
IGMP Snooping
IPv4
IPv6
Link Aggregation
MAC Filtering
Port Mirroring
RADIUS
SNMPv1
SNMPv2c
SNMPv3
Queuing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 16K
Multicast Groups 2000
VLAN IDs 4094
Security
Security Features DoS Attack Prevention
RADIUS Authentication
Storm Control
Access Control List 1024
IP Interfaces 128
Static Routes 990
SNMP Support 1, 2c, 3
Standards
RFC RFC 4330
Supported IEEE Standards 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3an, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate 95.23 Mpps
Switching Bandwidth 128 Gb/s
Priority Queues 8
Packet Buffer 1.5 MB
Computer
Flash Memory 256 MB
Memory 512 MB
OS Compatibility Windows
macOS
Linux
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Electrical
Power Draw 240.4 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 195 W
PoE per Port 30 W
Environmental
Operating Temperature 23 to 122°F / -5 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -13 to 158°F / -25 to 70°C
Storage Humidity 10 to 90%
General
Cooling System Passive
Mean Time Between Failures (MTBF) 698,220 Hours
Indicator Lights Link/Activity, PoE, Speed, System
Rack Form Factor 1 RU
Dimensions 17.5 x 11.8 x 1.7″ / 445 x 299 x 44 mm
Weight 8.11 lb / 3.68 kg
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
