Brands
Cisco

General

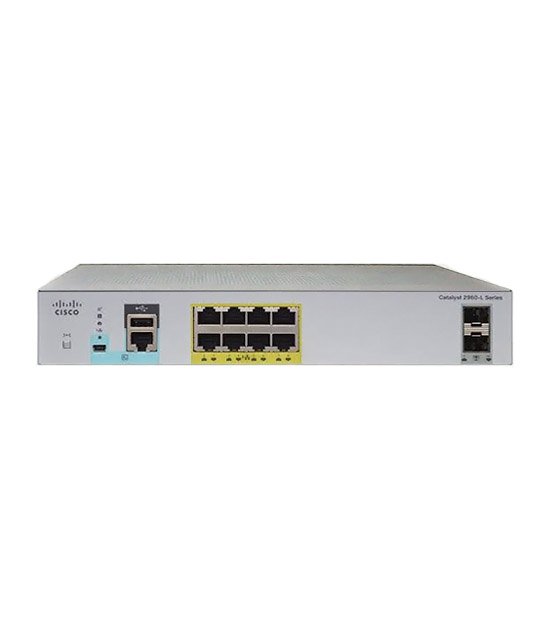

Device Type Switch – 8 ports – managed
Enclosure Type Desktop, rack-mountable
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 + 2 x Gigabit SFP (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 67 W
Performance Switching bandwidth: 20 Gbps ¦ Forwarding bandwidth: 10 Gbps
Capacity MAC addresses: 8000 ¦ VLANs supported: 4094 ¦ Active VLANs: 64 ¦ SPAN bidirectional sessions: 1
Jumbo Frame Support 10240 bytes
Routing Protocol IGMP
Remote Management Protocol SNMP 3, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Layer 2 switching, ARP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), fanless, Link Aggregation Control Protocol (LACP), MAC Address Notification, Per-VLAN Rapid Spanning Tree (PVRST), per-port broadcast throttling, Dynamic VLAN Support (GVRP), SNMP support, IGMP filtering, VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az
Processor ARM7: 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators System, status, PoE, link/speed
Expansion / Connectivity
Interfaces 8 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 2 x 1000Base-X SFP uplink
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50 – 60 Hz)
