Brands
TP-Link
WIRELESS
Standards and Protocols
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
AX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range

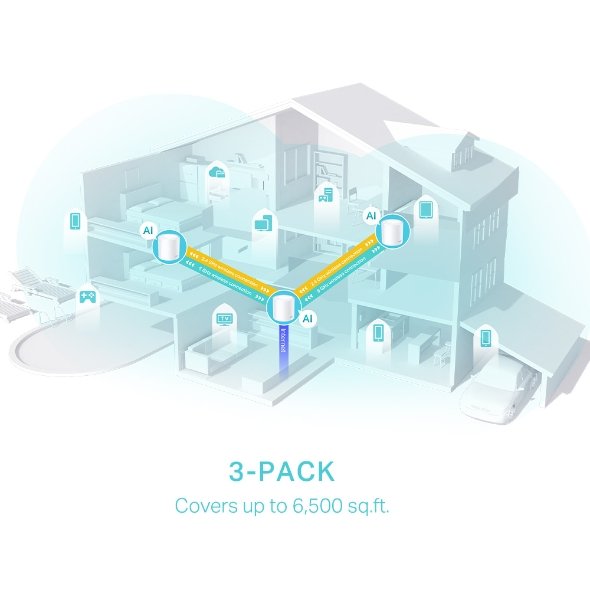

4-6+ Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
2× Internal Antennas (Deco X50 V1.0~V2.0)
3× Internal Antennas (Deco X50 V3.0)

WiFi Capacity

High

Dual-Band
Distribute devices to different bands for optimal performance
2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple WiFi 6 clients
4 Streams
More than enough bandwidth for connected devices

Working Modes

Router Mode
Access Point Mode
SECURITY
Network Security SPI Firewall
Access Control
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Effective Time
Bandwidth Control
VPN Server • Open VPN Server
• PPTP VPN Server
• L2TP VPN Server
VPN Client • Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
WiFi Encryption WPA-Personal
WPA2-Personal
WPA3-Personal
HARDWARE
Button Reset Button
Ethernet Ports 3× Gigabit Ports
*Per Deco Unit
Supports WAN/LAN auto-sensing
SOFTWARE
Advanced Features • Reboot Schedule
• Tapo/Kasa onboarding
• IoT network & Device Isolation
• Static Router Function
• Node/Band Connection Preference
Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
Parental Controls HomeShield Parental Controls
Youtube Restriction
SafeSearch
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Features Deco App
OTHER
Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP
DNS
DNS
• Port: 53   Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP
App management
Manage and configure device through app
• Port: 22   Protocol: TCP
• Port: 20001   Protocol: TCP
• Port: 30001   Protocol: TCP
• Port: 20002   Protocol: UDP
TEST DATA
WiFi Transmission Power CE:
<20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) PHYSICAL Dimensions (W×D×H) 4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm) Package Content Deco X50 (1-pack) 1 Deco X50 unit 1 RJ45 Ethernet cable 1 Power adapter 1 Quick Installation Guide Deco X50 (2-pack) 2 Deco X50 units 1 RJ45 Ethernet cable 2 Power adapters 1 Quick Installation Guide Deco X50 (3-pack) 3 Deco X50 units 1 RJ45 Ethernet cable 3 Power adapters 1 Quick Installation Guide OTHERS System Requirements Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. Certifications CE, FCC, RoHS, RCM Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
