HARDWARE FEATURES

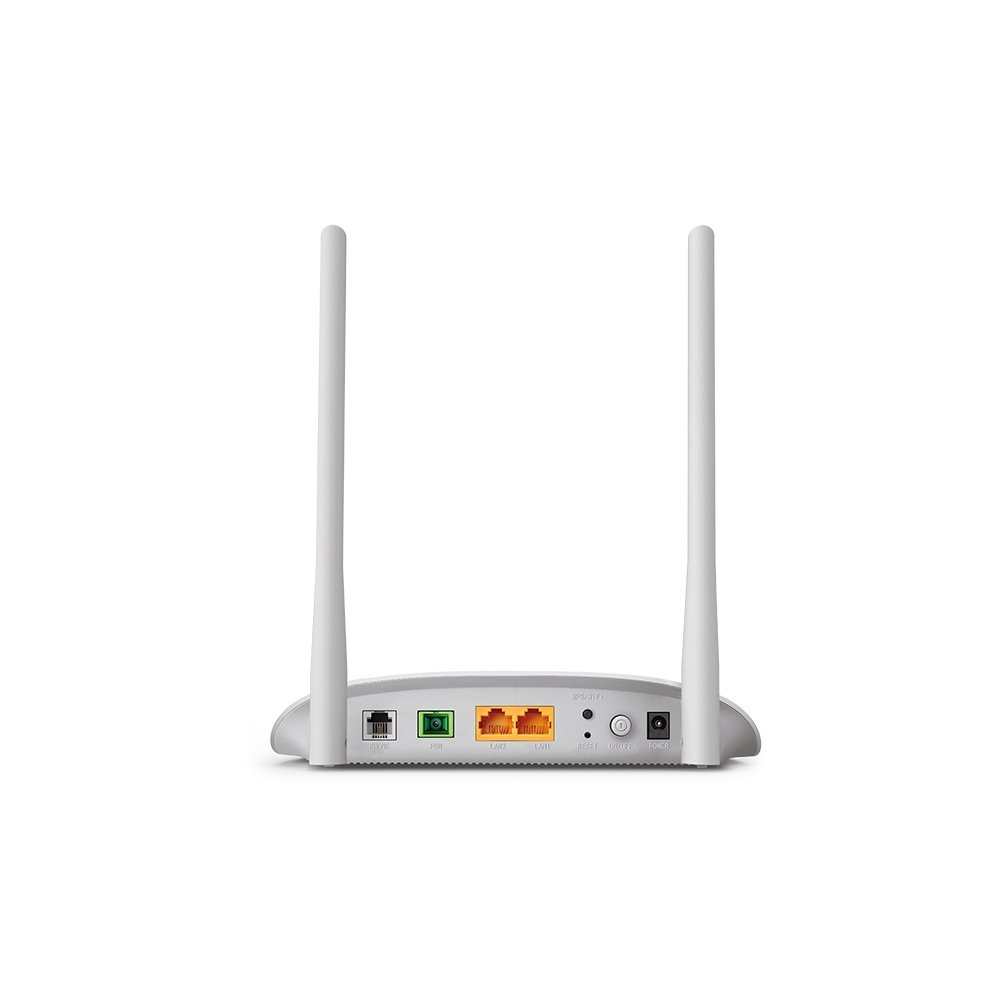

Interface 1* SC/APC port
1* 10/100/1000Mbps LAN Port
1* 10/100Mbps LAN Port
1 FXS Port
Button Power On/Off Button, Reset Button, WPS/Wi-Fi Buttion
External Power Supply 12V/0.6A
Wireless Standards IEEE 802.11g, 802.11b,802.11n
IEEE Standards IEEE 802.3, IEEE 802.3u, 802.3ab
Dimensions ( W x D x H ) 7.1 ×4.9× 1.4 in. (181.5 ×125.7 ×36.2mm)
Antenna Gain 2X2，2.4G 5dBi
GPON Standards ITU G.984.1
ITU G.984.2
ITU G.984.3
ITU G.984.4
Optical Module Class C+
Optical Wavelength Transmit at 1310nm Receive at 1490nm
Transmission Distance 0 ~ 20Km Max
Bandwidth Downstream up to 2.488Gbps Upstream up to 1.244Gbps Max
Receiver APD-TIA
Transmitter DFB Laser
WIRELESS FEATURES
Frequency 2.4GHz
Signal Rate 300Mbps at 2.4GHz
Transmit Power <20dBm (2.4GHz) Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions Wireless Schedule Support 2.4GHz Schedule SOFTWARE FEATURES Quality of Service Hardware QoS Security NAT Firewall, SPI Firewall, Access Control, MAC/URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding Management OMCI, Web Based Configuration, Command Line Interface, SSL for TR-069, OMCI Based Firmware Upgrade WAN Connection Type PPPoE, Dynamic IP, Static IP, Bridge DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP Dynamic DNS DynDns, NO-IP Protocols Support IPv4 and IPv6 Advanced Functions SN, Password, SN + Password Authentication Mode Upstream and Downstream FEC, AES encryption Dynamic Bandwidth Allocation(DBA) support NSR/SR 802.1Q VLAN, Static Routing; IGMP v1/v2 /v3 16 T-CONTs, 256 GEM Ports IGMP IGMP v1/v2/v3 IPSec VPN Support up to 10 IPSec VPN tunnels OTHERS Package Contents 300Mbps Wireless N Gigabit VoIP GPON Router XN020-G3v RJ11 Phone Cable RJ45 Ethernet Cable Quick Installation Guide Power Adapter System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 , or other Java-enabled browser Cable or DSL Modem Certifications CE, Anatel Environment Operating Temperature: 0℃~40℃(32℉~104℉) Storage Temperature: -40℃~70℃(-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
