HARDWARE FEATURES

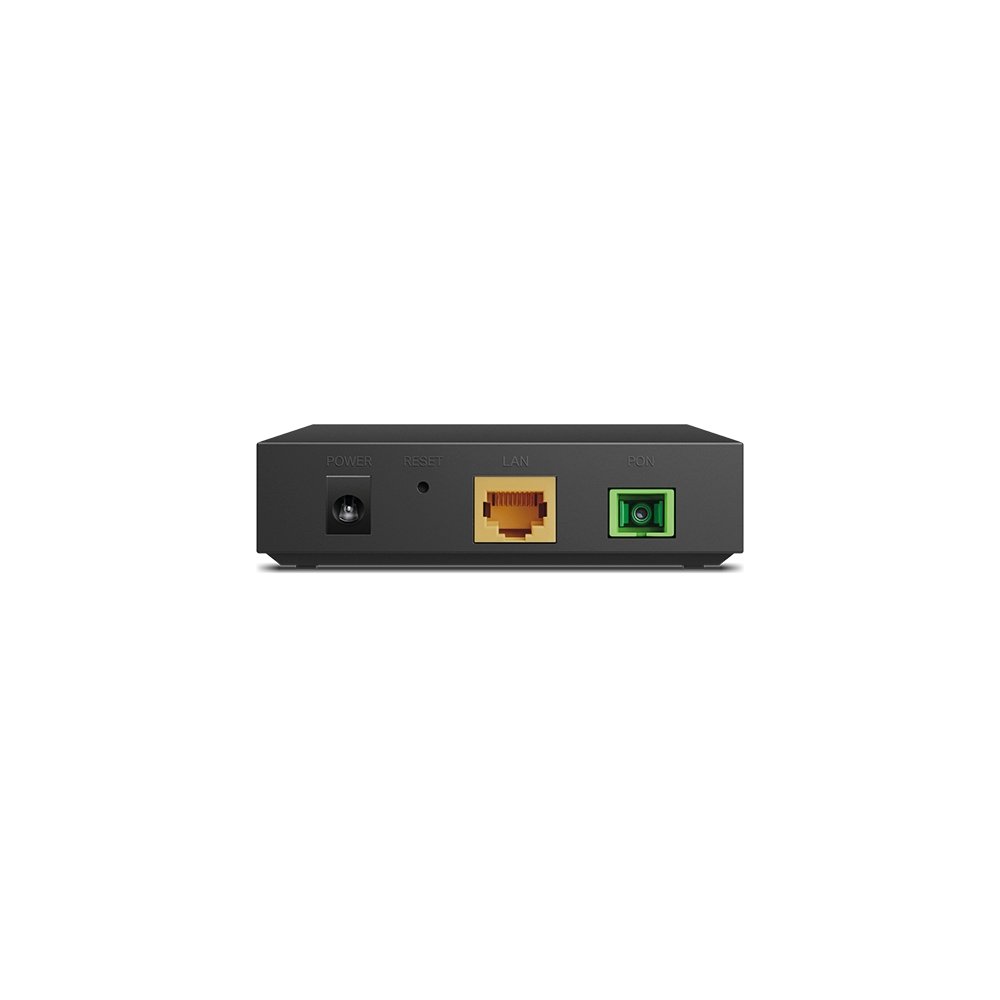

Interface 1 10/100/1000Mbps RJ45 Port, 1 SC/APC Port
Button 1 RESET Button
External Power Supply 9VDC/0.6A
IEEE Standards IEEE 802.3, 802.3u, 802.1p, 802.1Q
Data Rates Upstream: 1.244Gbps, Downstream: 2.488Gbps
Dimensions ( W x D x H ) 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)
Distance 0 ~ 20Km Max
GPON Standards ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
Optical Module Class B+
Receiver Super-TIA
Transmitter DFB Laser
Wavelength Upstream: 1310nm, Downstream: 1490nm
SOFTWARE FEATURES
VLAN 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect
Security AES Encryption, Packet Filter based on VLAN
Management Managed by Web, OMCI and Telnet, Specifed the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic
Advanced Features Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism
IGMP IGMP v1/v2/v3
OTHERS
Package Contents XZ000-G3, RJ-45 Ethernet Cable, Quick Installation Guide, Power Adapter
System Requirements Microsoft® Windows 8/7/Vista/XP, MAC® OS, NetWare®, UNIX® or Linux
Certifications CE, FCC, ROHS
Environment Operating Temperature: 0℃~40℃(32℉~104℉); Storage Temperature: -40℃~70℃(-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
