Panel Spec
LCD Module 19″ TFT-LCD
Pixel Pitch 0.294 mm x 0.294 mm
Support Color 16.7M colors
Contrast Ratio 1000:1
Luminance 250 cd/m²
Response time 5 ms
Viewing Angle 170° (H), 160° (V)
Connectors
Console Ports 1 x SPHD-15 Female (Yellow)
Power 1 x 3-prong AC Socket
Switches
LCD Adjustment 4 x Pushbuttons
LCD Power 1 x Pushbuttons
LEDs
CPU 1 (Green)
Num Lock 1 (Green)
Caps Lock 1 (Green)
Scroll Lock 1 (Green)
Emulation
Keyboard / Mouse PS/2, USB (with 2L-52xxUP USB KVM cable)
Video 1280 x 1024 @ 75 Hz ; DDC2B
Maximum Input Power Rating 100-240 VAC; 50/60 Hz; 1A
Power Consumption 120 V/23 W; 230 V/24 W
Environmental
Operating Temperature 0 – 50˚C
Storage Temperature -20 – 60˚C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Weight 11.06 kg ( 24.36 lb )
Dimensions (L x W x H) 48.30 x 58.52 x 4.40 cm
(19.02 x 23.04 x 1.73 in.)
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
ATEN CL1000N 19″ PS/2 VGA LCD Console
Original price was: ₹78,000.00.₹62,999.00Current price is: ₹62,999.00.

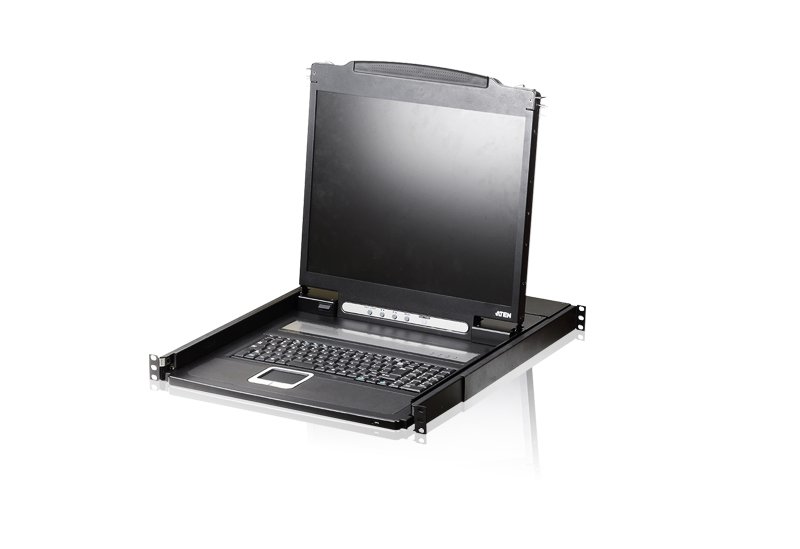

The CL1000N is a LCD KVM console that features an integrated 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U rack mountable housing. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.
Panel Spec
LCD Module 19″ TFT-LCD
Pixel Pitch 0.294 mm x 0.294 mm
Support Color 16.7M colors
Contrast Ratio 1000:1
Luminance 250 cd/m²
Response time 5 ms
Viewing Angle 170° (H), 160° (V)
Connectors
Console Ports 1 x SPHD-15 Female (Yellow)
Power 1 x 3-prong AC Socket
Switches
LCD Adjustment 4 x Pushbuttons
LCD Power 1 x Pushbuttons
LEDs
CPU 1 (Green)
Num Lock 1 (Green)
Caps Lock 1 (Green)
Scroll Lock 1 (Green)
Emulation
Keyboard / Mouse PS/2, USB (with 2L-52xxUP USB KVM cable)
Video 1280 x 1024 @ 75 Hz ; DDC2B
Maximum Input Power Rating 100-240 VAC; 50/60 Hz; 1A
Power Consumption 120 V/23 W; 230 V/24 W
Environmental
Operating Temperature 0 – 50˚C
Storage Temperature -20 – 60˚C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Weight 11.06 kg ( 24.36 lb )
Dimensions (L x W x H) 48.30 x 58.52 x 4.40 cm
(19.02 x 23.04 x 1.73 in.)
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
